Smart
6 axis Force Torque Sensor
The advanced F/T sensor with high precision based on the fringe effect and capacitance

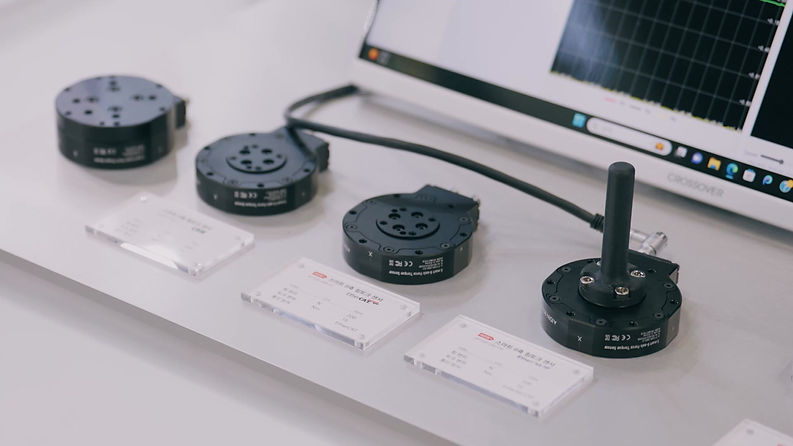

Smart 6 axis Force Torque Sensor
(AFT200 Series)
Smart 6 axis robot Force Torque sensor based on the fringe effect and capacitance
Smart 6 axis Force Torque Sensor
R-R-Adn-AFT200-D80-C (CAN)
R-R-Adn-AFT200-D80-EC (EtherCAT)
R-R-Adn-AFT200-D80-EN (EtherNET)
This is a essential Sensor set on the wrists of cobot. It makes the robot enable tool collision, tool weight compensation, force control, direct teaching tool, and object weight measurement with checking any power on senor.
※ Key feature
-
Integrated with IMU and providing a function of remembering self-location
-
CAN, EtherCAT, EtherNET type
-
Integrable with collaborative robots.
-
Excellent environmental resistance
-
4KV discharge test passed & CE, KC, FCC, RoHS
-
IP56 obtained waterproof / dustproof rating
※ Application Cases

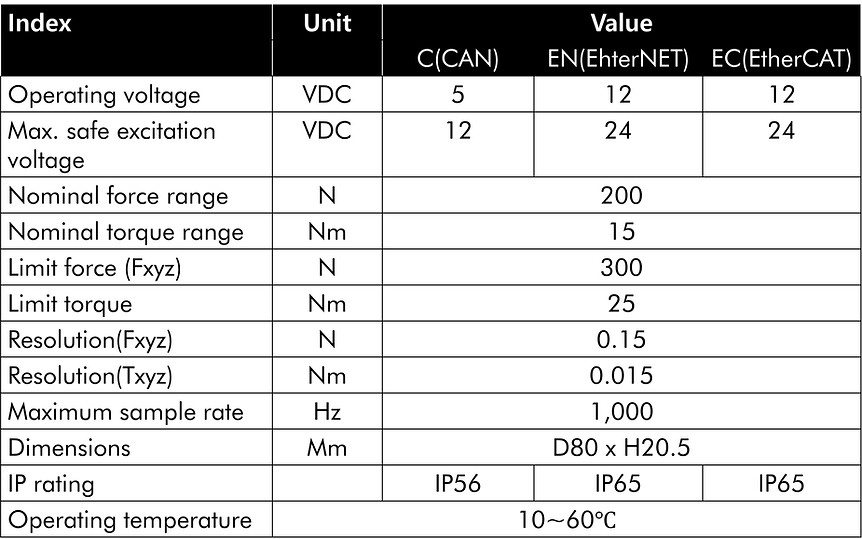

※ Specification
Smart 6 axis
Force Torque Sensor KIT
(AFT200-KIT-RB / NRMK)
The all-in-one 6 axis Force Torque sensor KIT for various cobot brand
Smart 6-axis Force Torque Sensor KIT
The 6 axis F/T Sensor KIT, featuring AIDIN ROBOTICS' advanced force-sensing technology, is now optimized for Rainbow Robotics & Neuromeka cobot series. It overcomes the limitations of capacitance measurement and offers functions like force control and collision detection. This kit improves manufacturing efficiency and ensures safe human-robot collaboration.
※ Applicable Model: Rainbow Robotics RB3/5/10/16 & Neuromeka Indy7
※ Key feature
-
All-in-one F/T sensor KIT optimized for Rainbow Robotics & Neuromeka Cobot
-
AIDIN Robotics self-developed Sensor applied with advanced capacitance force-sensing technology
-
Support Plug&Play mode based on collaborative robot brand
-
Provide Customized KIT for each collaborative robot brand
-
Easy Set-up mode in Teaching Pendant
※ Function
-
Precise force measurement
-
Force Control mode, accessible to any user directly via the teaching pendant
-
Collision detection and stop functions through force measurement
※ Application
-
Applicable to Various Processes requiring force control technology (Polishing, Sanding, Grinding)
-
Manufacturing line for assembling cables or components
-
Industrial Robot / Collaborative Robot
-
Smart Factory / Automation
※ Application Cases
※ Specification
